Monitoreal Relay
The perfect accessory for your home security system.
Trigger Actions using AI Analytics
One-touch Gate & Door Access
Supports 4 Relay Channels
A must have accessory for the Monitoreal bundle
- Control lighting or trigger sound (alarm/siren)
- Each relay channel can be configured independently
- Array of Connection and Configurations Available

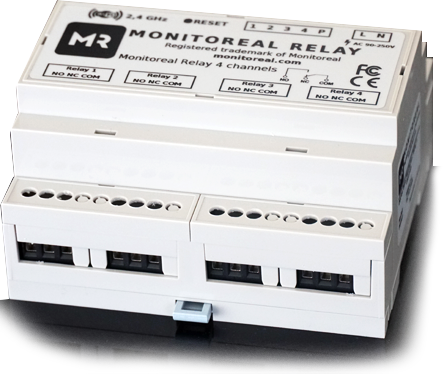

The Monitoreal Relay
Designed for switching electrical loads via four independent electromagnetic relays. Each of them can be controlled remotely by a command from the Monitoreal user interface. The device operates on AC 90 ~ 240 V and can be connected via Wi-Fi. The Monitoreal Relay works as a bolt-on with the Monitoreal Video Security Assistant.
Technical Parameters
Dimensions(mm):
118x127x53
Weight:
320g
Case material:
Plastic
Level of enclosure protection:
IP30
Method of installation:
DIN-RAIL 35mm (TS35/7.5 OR TS35/15)
Available case colors
Gray
Power:
Supply voltage: 90-264AC
Power input:
No more than 4W
Connector/wire cross section:
Screw terminal block/24~12AWG (0.21~3.3mm2)
Control relay:
Number of independent switching channels: 4
Maximum load on the channel:
6A at 250VAС, 6A at 30VDC, 3A at 40VDC
Type of contact:
COM-NC/NO
Connector/wire cross section:
Screw terminal block/24~12AWG (0.21~3.3mm2)
Connectivity:
2.4GHz 802.11 b/g/n (802.11n up to 150 Mbps) wireless LAN
Operating Conditions:
Temperature: -10~ +40C (Indoor use only)
